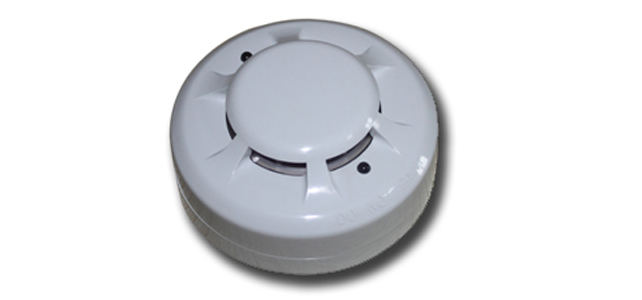

Photoelectric Smoke Detector TYPICAL WIRING DIAGRAM Figure 1.a shows the typical wiring diagram of 2-wire multiple-station smoke detector system. INITIATING LOOP UL LISTED COMPATIBLE CONTROL PANEL FIRST DETECTOR BASE LAST DETECTOR BASE RE EOLSISTOR REMOTE INDICATOR CLASS A OPTIONAL WIRING NOTE: IF REMOTE INDICATOR IS NOT USED, POLARITY TO DETECTOR MAY BE REVERSED. Fig. 1.a Installing the 2-wire multiple station smoke detector base DO NOT USE LOOPED WIRE--UNDER-TERMINALS 2 AND 5 BREAK WIRE RUN TO PROVIDE SUPERVISION OF CONNECTIONS Figure 1.b shows the typical wiring diagram of 4-wire multiple-station smoke detector system. POWER TO DETECTOR UL LISTED COMPATIBLE CONTROL PANEL INITIATING LOOP EOL POWER SUPERVISION FIRST DETECTOR BASE LAST DETECTOR BASE RELAY MODULE 6 1 3 4 5 6 1 3 4 Ma gia einh Itatir Wire witir END OF LINE DEVICE CLASS A OPTIONAL WIRING Fig. 1.b Installing the 4-wire multiple station smoke detector base DO NOT USE LOOPED WIRE UNDER TERMINALS 2 AND 5 BREAK WIRE RUN TO PROVIDE SUPERVISION OF CONNECTIONS WARNING TO PREVENT_ DETECTOR _CONTAMINATION AND SUBSEQUENT WARRANTY CANCELL-TION, SMOKE DETECTOR MUST REMAIN COVERED UNTIL AREA IS CLEAN AND DUST FREE. INSTALLING THE BASE 1. To insure proper installation of the detector head to the base, all the wires should be properly addressed at installation (A)Position all the wires flat against terminals. (B)Fasten the wires away from connector terminals. 2. If you use the jumper wire to connect the poles of terminal 2 and 5 when testing the detector loop continuity, be sure to remove the jumper wire prior to the installation of the detector head. 3. The end-of-line device shown in Figure 1.a & 1.b should be compatible with the control unit. The end-of-line supervisory relay used should list the rated DC power voltage used. QS388 series Installation Wiring Diagram 4. Per UL listing, open area smoke detectors are intended for mounting on a ceiling no less than 6 inches from a wall or mounting on a wall than no less than 4 inches and no more than 12 inches from a ceiling. 5. The base of smoke detector can be mounted directly onto electrical junction box such as octagonal (3", 3.5" or 41, round (3"), and square (4" length) box without using any type of mechanical adapter. INSTALLING THE HEAD 1. Align the components as shown in Figure 2. 2. Mate the detector head onto the base and twist clockwise to secure it. 3. Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts,. etc._ The maximum number of smoke detector installed in the same loop is 30 units. MIDDLE COVER ► FD AUGNME NT MARK TOP COVER BASE Fig. 2 Mating detector head onto base TESTING 1. All the alarm signal services, releasing device and extinguisher system should be disengaged during the test period and must be re-engaged immediately at the conclusion of testing. 2. After energizing the detector head for approximately one_radirator red LED _ flashing once every 3 seconds. If red LED fails to flash, it indicates the non-functioning of the detector or faulty wiring. Re-check the wiring or replace the detector if necessary. 3. Allow smoke from a cotton wick or a punk to enter the detector's sensing chamber for at least 10 seconds. When sufficient smoke has entered the chamber, a pre-alarm signal will take place with LED flashing once every 1 second, then go into alarm status by indicating with a continuous illumination of the LED. After it alarms, Reset each detector and/or control unit before attempting to test the additional detectors in the same zone. If the alarm fails in this step, it indicates a defective unit, which requires service. HEAT SENSOR TESTING The detector to be tested should be subject to a flow of warm air at a temperature between 140T and 180 Some domestic hair dryers can meet such requirement. Proceed as follows: 1 Switch on the warm airflow and check that temperature is correct and stable. 2 From a distance of inches, direct the airflow at the guard protecting the thermistor. The detector should alarm within 30 seconds. 3 When alarm is on, immediately remove the heat source and check that the detector's red LED is lit. Reset the detector from the control panel. 4 If the detector fails to go into alarm within 30 seconds it is too insensitive and needs to be returned to the distributor for servicing. 5 After testing check that the system is set for normal operation and notify the appropriate authorities that the testing operation is complete and the system is active again. NOTES FOR USING DETECTOR The National Fire Protection Association (NFPA) states that duct smoke detector must not used as a substitute for open area smoke detector. Duct smoke detector is solely intended to use in the air handing equipments for such purposes like dampers or shutting down the air handing units. NOT SUITABLE FOR INSTALLATION IN AREAS WHERE AIR VELOCITIES EXCEED 300 ft/min. SPECIFICATION MAINTENANCE The recommended minimum requirement for detector maintenance consists of an annual cleaning of dust from the detector head by using a vacuum cleaner cleaning program should be agreed to the individual environment in conformance with NFPA-72 standard. CAUTION: DO NOT ATTEMPT TO REMOVE THE SCREWS, WHICH HOLD THE ASSEMBLY OF SMOKE-SENSING CHAMBER AND PRINTED CIRCUIT BOARD (PCB). THIS ASSEMBLY IS SEALED FOR YOUR PROTECTION AND IS NOT INTENDED TO BE SEPARATED FOR SERVICING BY USERS. OPENING SUCH ASSEMBLY WILL VOID THE WARRANTY. REFER TO THE TECHNICAL BULTTIN ISSUE NO. STQS388S01, REV.A, DEC 21, 2010 Model 2/4 wire Heat Sensor Setting Voltage DC (Min./Max.) Standby Current (Max.) Alarm Current (12/24V) Surge Current (Max.) Start-Up Time (Max.) Permissible Current (Max.) Alarm contact Base Model No. QS388-2 2 10 —33V 40pA 40mA 80pA 30 Sec. 80mA 382001 QS388-2L 2 - 10--33V 40pA 40mA 80pA 30 Sec. 80mA 384001 QS388-2H 2 135±5°F 10--33V 40pA 40mA 80pA 30 Sec. 80mA 382001 QS388-2HL 2 135±5° . 10--33V 40pA 40mA 80pA 30 Sec. 80mA 384001 05388-4 4 12/24V 40pA 30/40mA 80pA 30 Sec. Form A 384001 QS388-4H 4 135.5 J." 12/24V 40pA 30/40mA 80pA 30 Sec. Form A 384001 QS388-4AR 4 12/24V 40pA 30/40mA 80pA 30 Sec. Form A/ Auto reset 384001 QS388-4HARB 4 135±5°F 12/24V 40pA 30/40mA 80pA 30 Sec. Form A/ Auto reset 384001 Remark: L- remote indicator output; H-Heat sensor; AR-Auto-reset; B-Sound LIMITED WARRANTY STATEMENT AGNI DEVICES PVT.LTD declares that this product is free from defects in material and workmanship. And it will repair or replace any product or part thereof which proves to be defective in workmanship or material for a period of twelve (12) months from the date of purchase but not to exceed eighteen (18) months after shipment by the manufacturer. For a full description of AGNI'S LIMITED WARRANTY, which, among other things, limits the duration of warranties of merchantability and fitness for a particular purpose and excludes liability for consequential damages. Please read the entire LIMITED WARRANTY on the AGNI quotation: Acceptance of order and/or original invoice which will become part of your sales agreement. Please contact AGNI directly for a return merchandise authorization (RMA) number before returning goods to the factory, Shipment must be prepaid and AGNI will repair or replace your returned detector. SDMI766, REV A
